Introduction

Use the Data Sources Preferences tab to

• view, add, or edit data source sites from which IGB can retrieve data.
• load personal genome version and chromosome synonyms files.
• change how IGB caches data from remote and local sites.

When you choose a species and genome version, IGB downloads meta-data files about available genomes from each site listed in the Data Sources list. If a site contains data for the currently displayed genome, then IGB lists those sites in the Available Data section of the Data Access tab. And when you load sequence data into IGB by clicking the Load Sequence button, IGB attempts to obtain the sequence data from the data sources in the same order they appear in the Data Sources list.

To open the Data Sources Preferences tab:

• Select Data Access > Configure

or

• Select File > Preferences > Data Sources

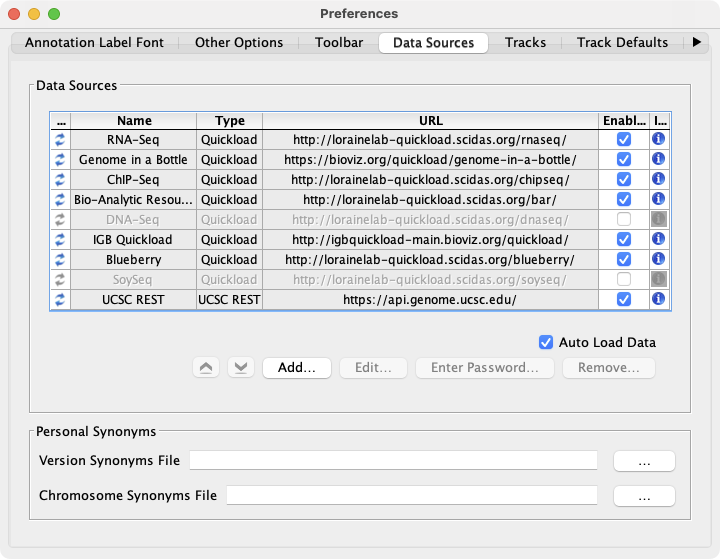

Data Sources

Data sources

The Data sources table lists all active and inactive data sources that have been added to IGB. Active Data Sources have a check in the enabled column. When you select a genome version, IGB contacts each active server to determine if the server has any data sets for the selected genome. If a server has data sets for the selected genome, the available data sets will appear as options in the Available Data section of the Data Access tab.

Information About Data source

You can click on the info symbol (i symbol in blue circle) of the Data Sources tab to display information about the particular Data Source.

Data sources order

For some genome versions, more than one data source may provide sequence data. When you click the Load Sequence button (top right), IGB loads sequence directly from the first server on the list that supports the currently selected genome.

To change the order of data sources listed in the Data Sources preferences tab, click Up and Down buttons.

Adding new data sources

Use Add... to add a new data source. A new window will open with boxes and a menu for you to specify a new data sources. See Adding and Managing Data Source Servers

Enter user names and passwords

Click Enter Password... to enter or change the user name and password IGB uses to access private data sources.

Data loading settings

Some servers are configured to automatically load certain foundation data sets, such as the RefSeq gene models, into IGB as soon as the corresponding genome is selected. To block this behavior, uncheck Auto Load Data.

Personal Synonyms

Different data sources often refer to the same genome version or chromosome by different names.

For example, "hg17", "ensembl1834" and "H_sapiens_May_2004" all refer to the same genome assembly and sequence. Similarly, some data providers use "chr1" to refer to chromosome one while others may use "1" to mean the same thing.

IGB provides a system for designating synonyms for sequences and genome versions.

Version Synonyms File

A version synonyms file matches genome versions and allows you to display data from multiple sources in the same window.

Each time IGB restarts, synonyms will be loaded and merged from all the servers in use as well as from any personal synonyms file that you have specified.

A genome version synonyms file follows a simple tab-delimited format in which synonyms for the same genome appear in the same line, separated by tab characters.

Chromosome Synonyms File

A chromosome synonyms file is tab-delimited. Each line lists possible names for the same sequence.

Each time IGB starts, synonyms will be loaded and merged from all the servers in use as well as from any personal chromosome synonyms file entered here.

Cache Settings and clear the cache

IGB caches data that you have loaded over the web in order to speed the loading process the next time you use it. Files loaded from your local file system will not be cached.

Clicking the Empty Cache button forces IGB to clear its local cache of downloaded data sets.
