Exporting images

To export an image, select File > Export Image.... A window similar to the image below will open.

IGB User's Guide > Exporting and saving images > export.png

Image export options

Image format IGB supports PNG, JPEG, and SVG.
Image size Select image size. Default values are the current dimensions of the IGB window. Aspect ratio is locked. To change the aspect ratio, resize the IGB window and click the Refresh button.
Export options (Preview)
- Whole Frame includes the entire IGB window
- Main View (with Labels) includes tracks and track labels only.
- Sliced View (with Labels) is available only when the Sliced View tab is open. It will export the image from the Sliced View tab.

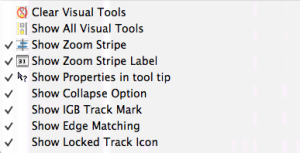

Use the View menu to show or hide parts track decorations and other visual tools, such as the zoom stripe, edge matching marks, or the zoom stripe label.

View menu options (click to enlarge)

Printing

File > Print Main View with Labels... prints tracks and track labels only

File > Print Whole Frame... prints the entire IGB window.
