General Function Checklist

Loading Default Tracks

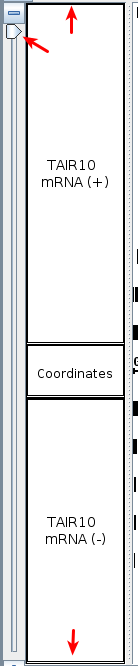

- Open a species from the home page of IGB. The examples below are using Arabidopsis Thaliana.
- Ensure that x and y zoomers are completely zoomed out.
- Ensure that the tracks consume all of the available vertical space

IGB Release Documentation > Track View > Selection_016.png

Zoom,Drag, and Selection Operations

Zoom in by click and dragging across the coordinates. Note that the screenshot is missing the mouse cursor. The blue highlighted area represents the area created by dragging the cursor.

IGB Release Documentation > Track View > Menu_017.png

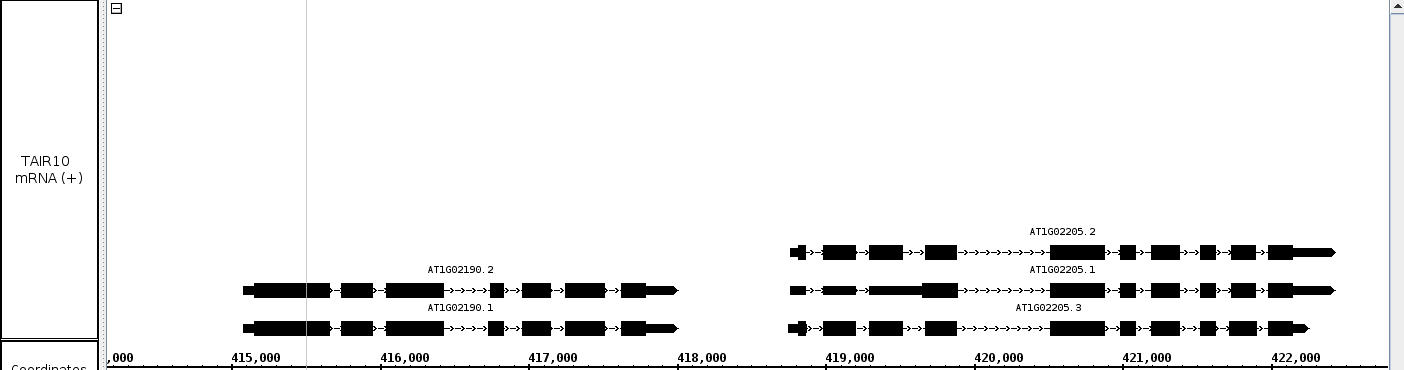

Adjust the zoom such that multiple gene models are in view

IGB Release Documentation > Track View > Selection_021.png

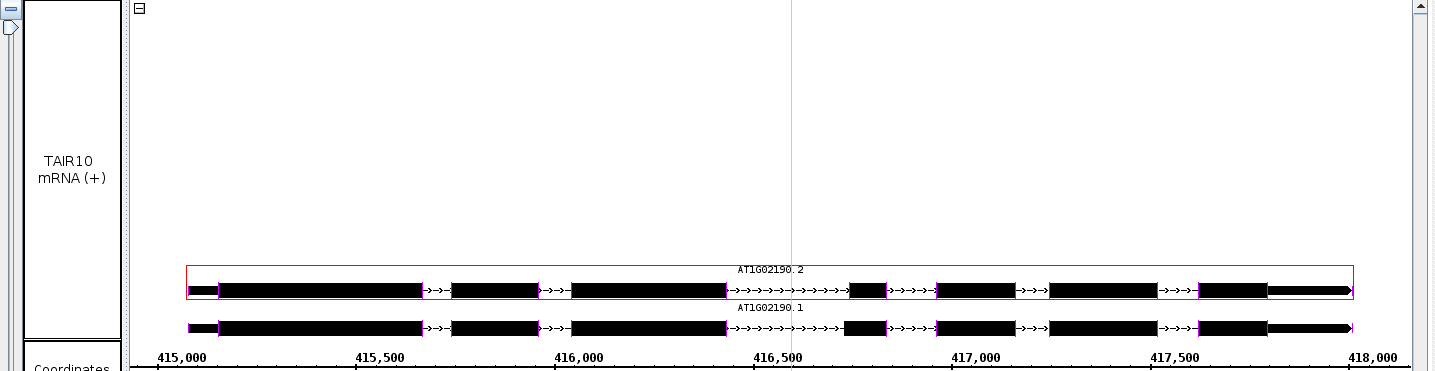

Double click on the barb wire region of a gene model. The view should zoom to fit the selected gene model.

IGB Release Documentation > Track View > Selection_022.png

Zoom back out to view multiple gene models

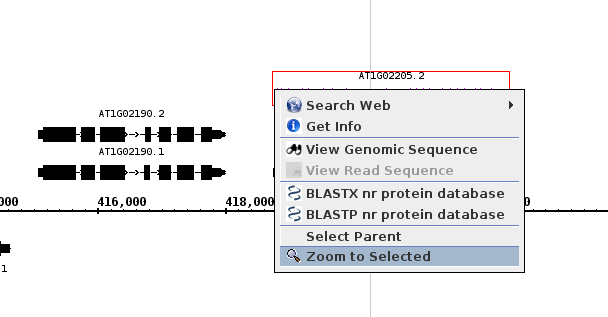

Right click on a different gene model.
Validate that the menu looks as follows

IGB Release Documentation > Track View > Menu_023.png

Select "Zoom to Selected"
The view should zoom to fit the selected gene model
Zoom slightly out in both the x and y direction.
Select the hand "Grab Tool".

IGB Release Documentation > Track View > Selection_028.png

Click and drag anywhere in the track view.
Validate that the panel scrolls in the direction of the cursor.
Select the "Selection Tool"

IGB Release Documentation > Track View > Selection_029.png

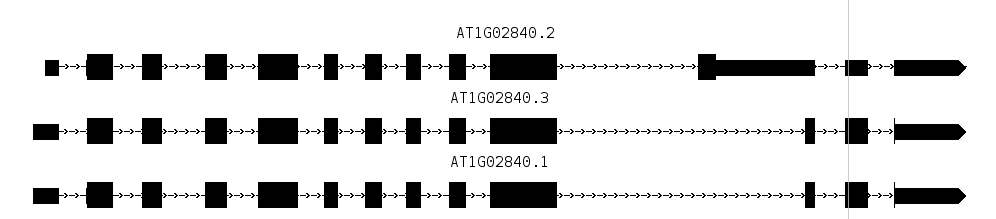

Go to a group of gene models that are stacked

IGB Release Documentation > Track View > Selection_030.png

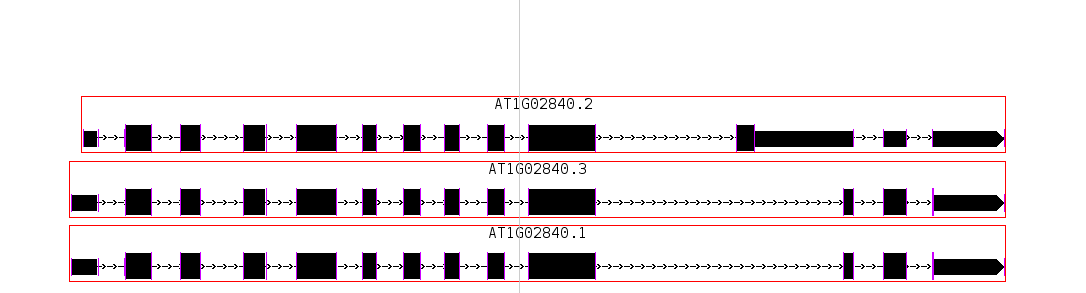

Click and drag across the gene models.
Validate that all of the gene models are selected.

IGB Release Documentation > Track View > Selection_031.png

Track Style Preferences

Right click on the white space within a track
Select the "Customize" option

IGB Release Documentation > Track View > image2015-9-2 11:3:9.png

This action should open the Track Preferences tab

IGB Release Documentation > Track View > image2015-9-2 11:4:21.png

Change the Track Name and select apply.

IGB Release Documentation > Track View > image2015-9-2 11:6:19.png

Validate that the track names were updated.

IGB Release Documentation > Track View > image2015-9-2 11:7:7.png

Change the foreground, background, and track label colors.

IGB Release Documentation > Track View > image2015-9-2 11:10:37.png

Validate the color changes

IGB Release Documentation > Track View > image2015-9-2 11:11:13.png

Change the track label font size

. IGB Release Documentation > Track View > image2015-9-2 11:13:0.png

Validate that the font increased appropriately.

IGB Release Documentation > Track View > image2015-9-2 11:13:20.png

Adding and Removing Tracks

Right click on the white space surrounding the gene models
Validate that the context menu looks as follows

IGB Release Documentation > Track View > Menu_024.png

Select "Delete Track". The track should disappear.

IGB Release Documentation > Track View > Selection_025.png

Add the track back in the Data Access tab.

IGB Release Documentation > Track View > Selection_026.png

The track will reappear with no data loaded. Select the Load Data button to reload the data.

IGB Release Documentation > Track View > Selection_027.png
