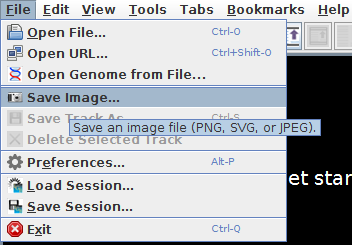

• Access Save Image from File menu

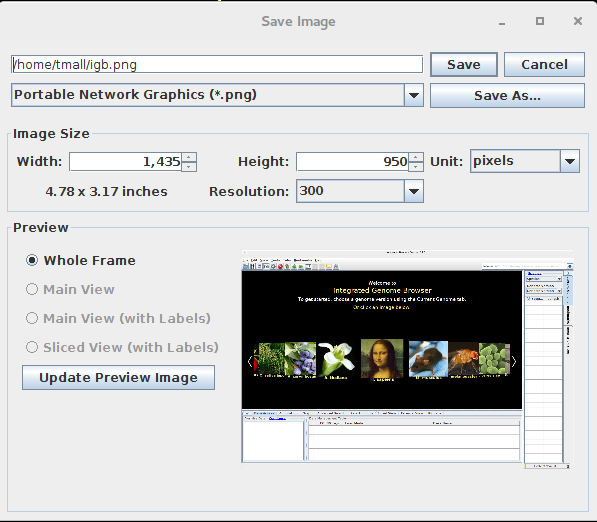

  • Observation: Save Image window appears.




• Access Save Image from Toolbar



  • Observation: Save Image window appears.




• Last saved file location should be default even after restart.

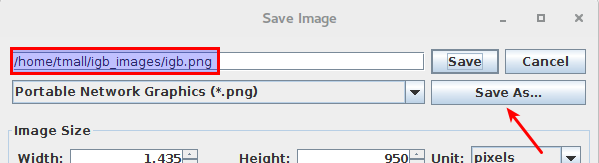

  • Use SaveAs button to save image to a custom location.

  • Restart IGB and save image again.

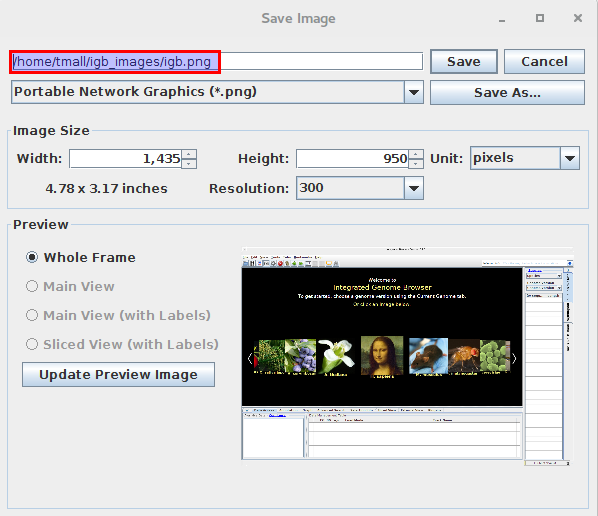

    • Observation: you should see your last saved location.




• PNG, SVG and JPEG is the order for dropdown.

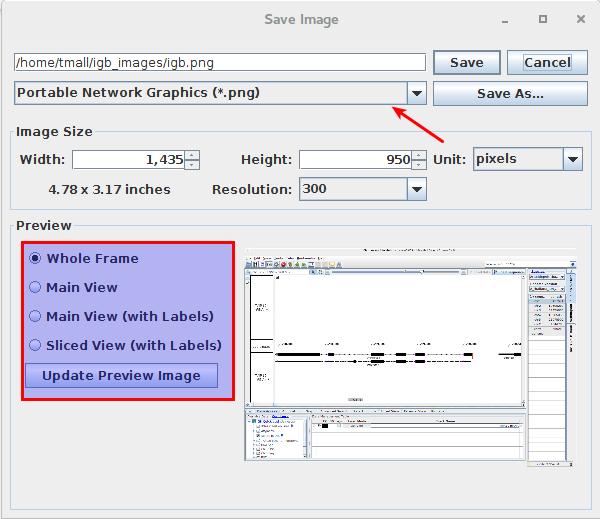

• Export and save image using all following permutations (to achieve all permutations use file types option and Preview option)


  • svg and whole frame
  • svg and main view
  • svg and main view with labels
  • svg and sliced view with labels
  • png and whole frame
  • png and main view
  • png and main view with labels
  • png and sliced view with labels
  • jpeg and whole frame
  • jpeg and main view
  • jpeg and main view with labels
  • jpeg and sliced view with labels
    • Observation: Images saved in all the scenarios.



• Change the inches and pixels parameters.

  • Observation: Changing one width will change height and vice versa.

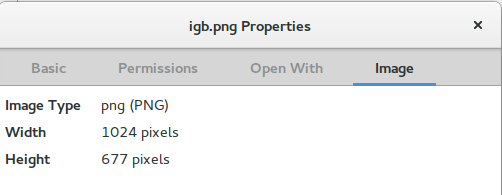

• Check exported file dimensions.


  • Observation: Exported image will of same dimension as used in IGB.

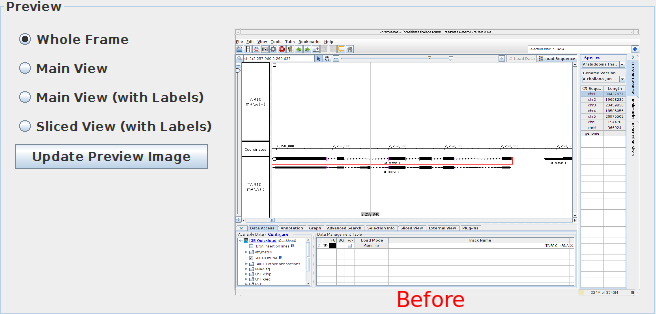

• Update preview image button working.
  • Open Save Image dialog by file menu or toolbar icon.
  • Leave Save Image open and go back to a different location in IGB.
  • Come back to Save Image and click "Update Preview Image" button.

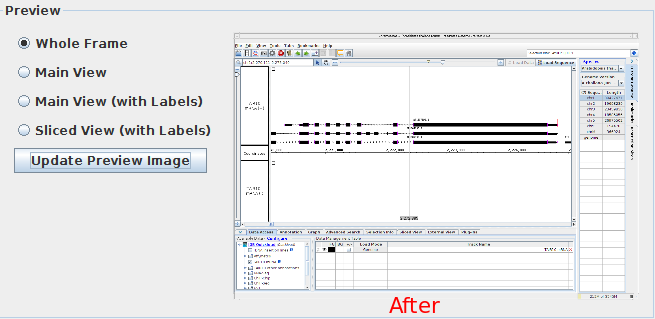

    • Observation: Preview image will be updated based on new location in IGB.

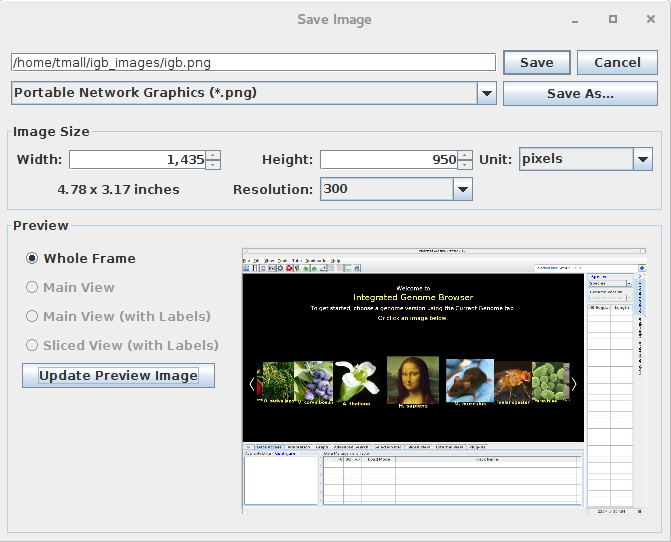

• Check save image from IGB main screen/ home screen.
  • Observation: you can save "Whole Frame" preview of IGB.
